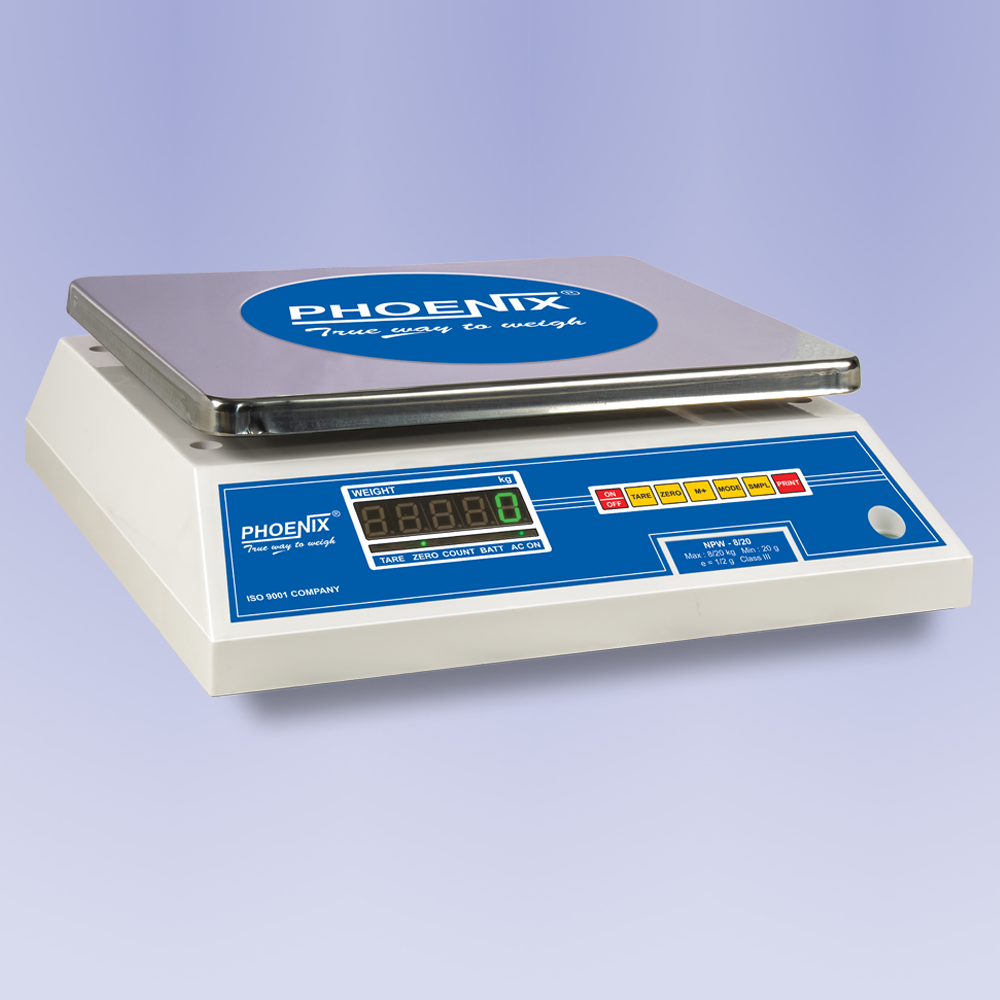

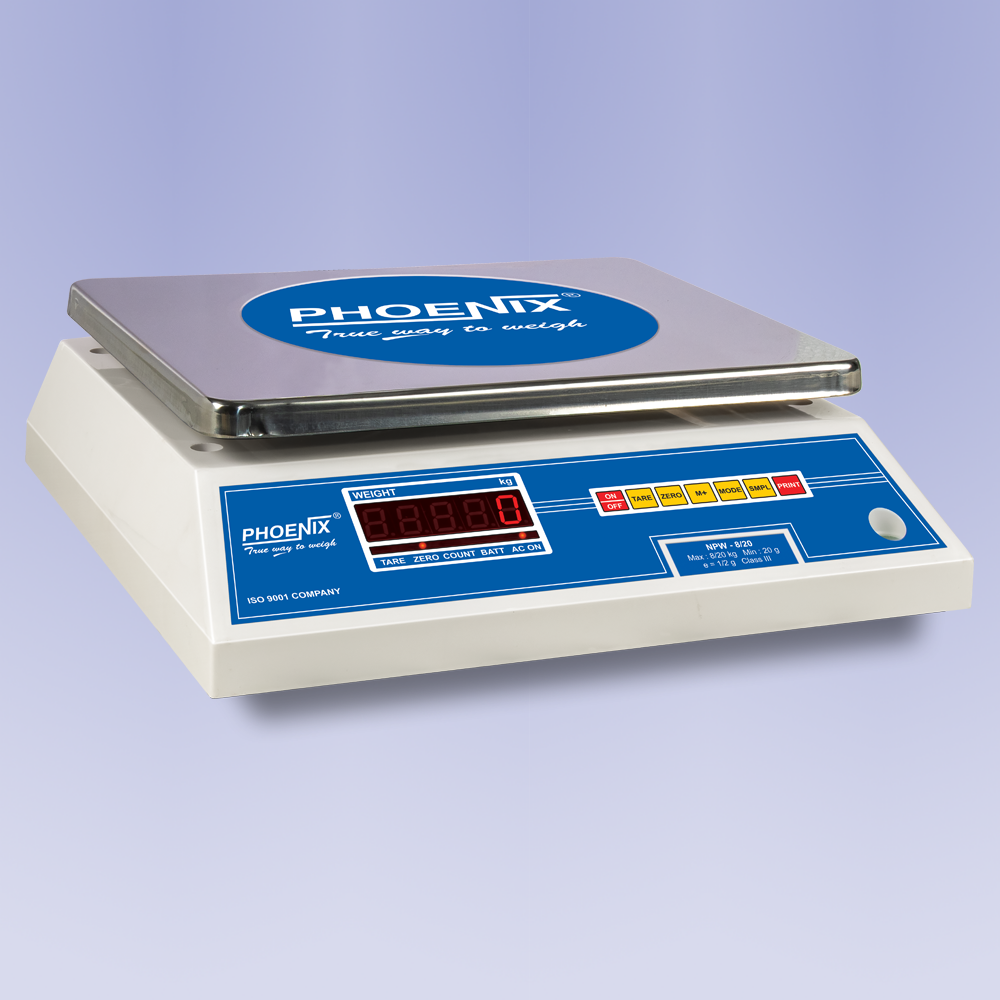

Tabletop Weighing Scale
NPW Series
Salient Features
- Loadcell based electronic weighing scale.
- Accurate and quick weighing.
- LED display
- Indigenously developed, designed and manufactured in India.
| Models | Capacity | Accuracy | Platter Size |
|---|---|---|---|
| NPW – 3 A | 3 kg | 0.2 g | 270 x 220 mm |
| NPW – 6 A | 6 kg | 0.5 g | 270 x 220 mm |
| NPW – 15 A | 15 kg | 1.0 g | 270 x 220 mm |
| NPW – 30 A | 30 kg | 2.0 g | 270 x 220 mm |
| NPW – 8/20/30 | 8/20/30 kg | 1/2/5 g | 270 x 220 mm |
*Model with lower/better resolution is also available.
*Multi-Interval instruments (Dual Accuracy Scales) are also available.
Specifications
Accessories
Applications
Videos
Specifications
| 1 | Weighing technology | Loadcell |
| 2 | Display | Red bright LED display. Adjustable display intensity for longer battery back-up. |
| 3 | Keyboard | Feather-touch keyboard with audible indication during entry. |
| 4 | Indications | A.C. On, Nett/Gross weight, Zero, Battery, Battery low & Count mode. |
| 5 | Modes of operation | Weight, Counting. |
| 6 | Memory accumulation feature | Yes. |
| 7 | Hardware | Sturdy ABS body with SS platter. |
| 8 | ADC | 24 bit Σ – Δ ADC (High resolution). |
| 9 | Power requirement | AC supply : 230V +10%, -20%, 50 Hz ,±2%. |
| 10 | Dimensions (mm) | 312 (L) x 302(W) x 106(H), Tol: ± 10mm |
Accessories
- 3.7 V 2200 mAH rechargeable Li-Ion battery
- Bluetooth feature with Android app.

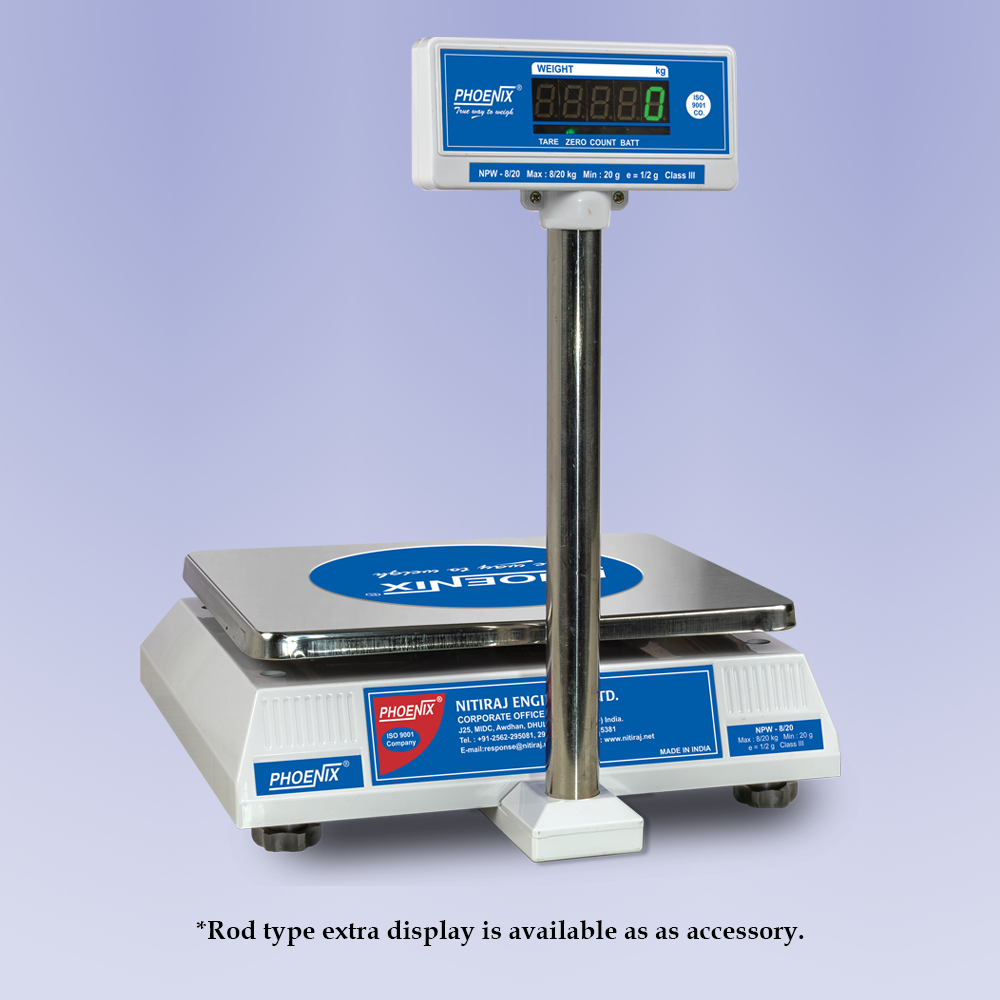

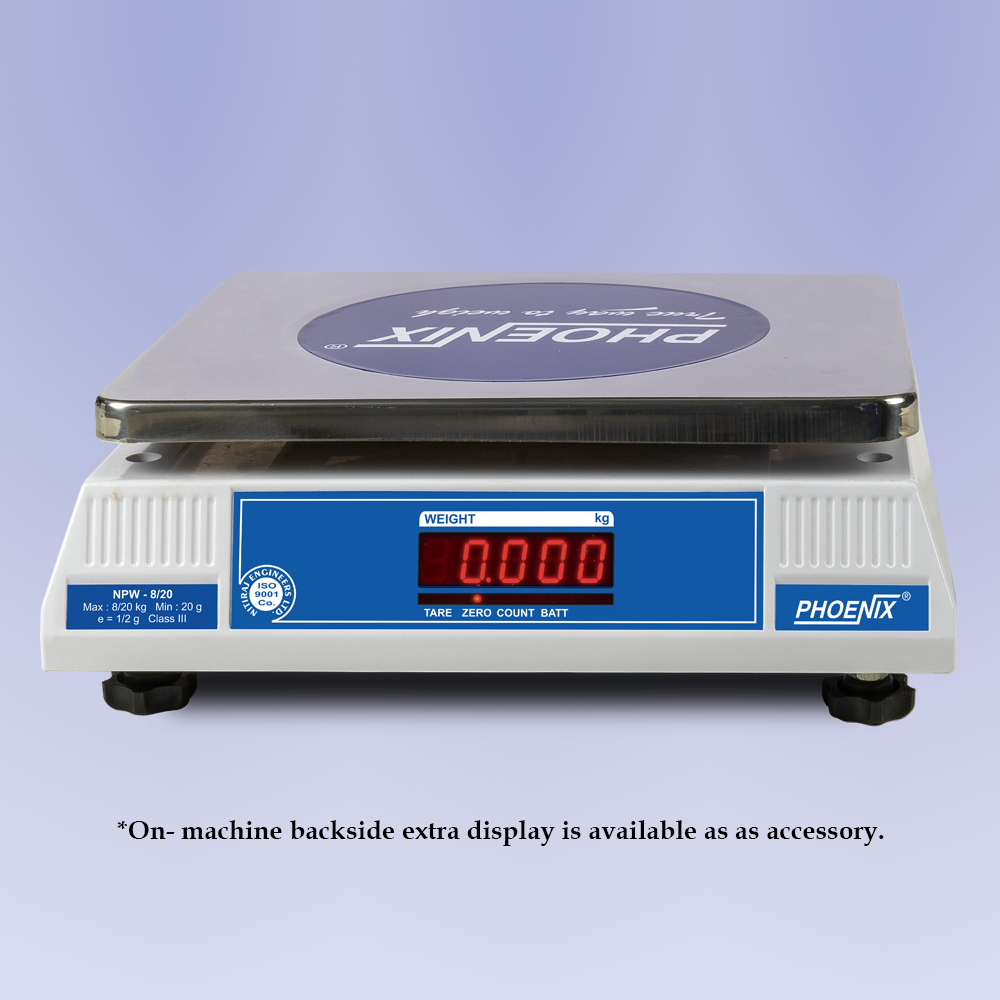

- Extra display (at the backside of the scale or rod type).
- Wireless RF display.
- Green / Blue bright LED display.
- Computer / Printer interface (RS – 232 C).
- Thermal printer (with adaptor).
- USB host port (to transfer data on Pen Drive).
- USB port (to connect with computer).
- Real-Time Clock.
- 3 Big LED Indications (for check weighing).
- 2000 Batch Memory.
Applications
- Shops
- Vegetable / fruit vendors
- Kirana stores
- Homes
- Industries
