CGMS Series

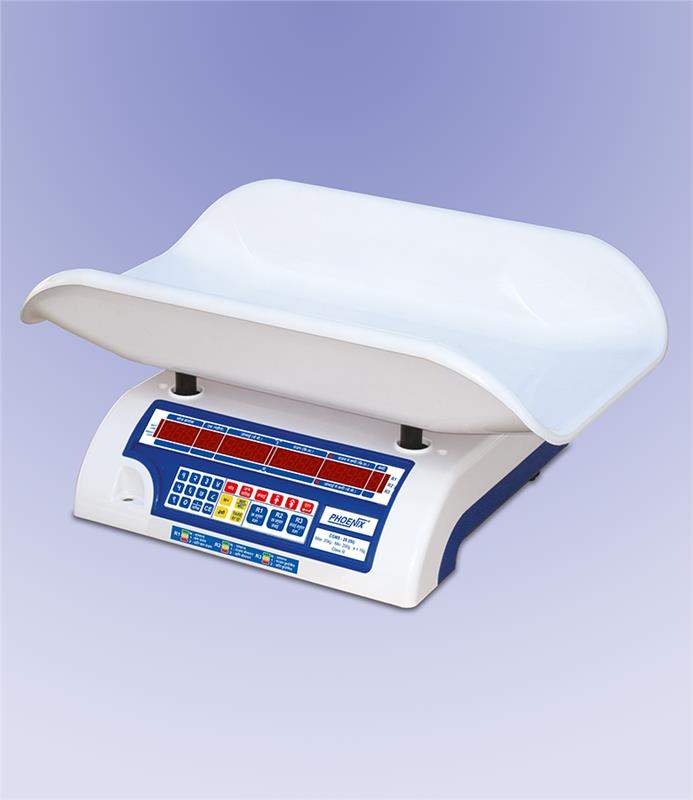

Baby Weighing Scale with Child Growth Monitoring System

Baby Weighing Scale with Child Growth Monitoring System

CGMS Series

Salient Features

CGMS (Child Growth Monitoring System) is used to monitor malnutrition amongst children in aaganwadi, PHCs, NICU and hospitals.
It gives the result of a child comprising of all three growth charts published by world health organization (WHO), namely UNDERWEIGHT, STUNTING and WASTING. It gives the category of underweight, stunning and wasting as well as shows the amount of underweight and stunting of a child.
USB host port can be provided by which the data of children can be copied on a Pen Drive and the same can be transferred to computer so that authentic malnutrition status can be provided at desired level of administration in a short time frame.
It is compatible with computer software, “MAA” (Malnutrition Assessment and Analysis) by which one can analyse the various data about growth monitoring in tabular and graphical format. One can view information of an individual child, aanganwadi, place, project, block, district and state, individually or collectively.
User friendly local language keyboard, keeping in view utilisation by aanganwadi workers.
Baby bowl made up of ABS is supplied with scale.
LED display.
Light weight, easy to operate and highly efficient.
Indigenously developed, designed and manufactured in India.

Specifications

Accessories

Applications

Videos

Specifications

Accessories

Applications

Videos

1	Weighing technology	Loadcell
2	Weighing capacity	20 kg
3	Weighing accuracy	10 g
4	Display	18 digit easy to read bright red LED display.
5	Keyboard	25-key feather touch membrane keyboard with audible indication. User friendly local language keyboard.
6	Memory	Yes, it can store the data of 500 children.
7	Hardware	Sturdy ABS body. It is equipped with sturdy and large size of ABS bowl which can accommodate children aged 0 to 72 months (as per Weight & Measures rules). Portable and sturdy design.
8	Special features	It gives the result of a child comprising of all three growth charts published by world health organization (WHO), namely UNDERWEIGHT, STUNTING and WASTING. It gives the category of underweight, stunting and wasting as well as shows the amount of underweight and stunting of a child. It can be equipped with rechargeable battery backup by which the system can be operated for minimum 8 hrs on battery. Equipped with Real Time Clock, provides date of each weighment. USB host port can be provided by which the data of children can be copied on a Pen Drive and the same can be transferred to computer so that authentic malnutrition status can be provided at desired level of administration in a short time frame. Computer software, “MAA” (Malnutrition Assessment and analysis) by which one can analyse the various data about Growth Monitoring in tabular and graphical form. One can view information of an individual child, aaganwadi, place, project, block, district and state, individually or collectively.
9	ADC	24 bit Σ – Δ ADC (High resolution).
10	Power requirement	AC supply : 230V +10%, -20%, 50 Hz ,±2%
11	Dimensions	1.) Machine : 343 (L) x 358 (W) x 102(H),Tol : ± 10mm. 2.) Baby Bowl : 550 (L) x 300 (W) x 110 (H),Tol : ± 10mm.
12	Operating temperature	0 to 50 degrees celcius.
